Cable Assignment on Feedthough flange

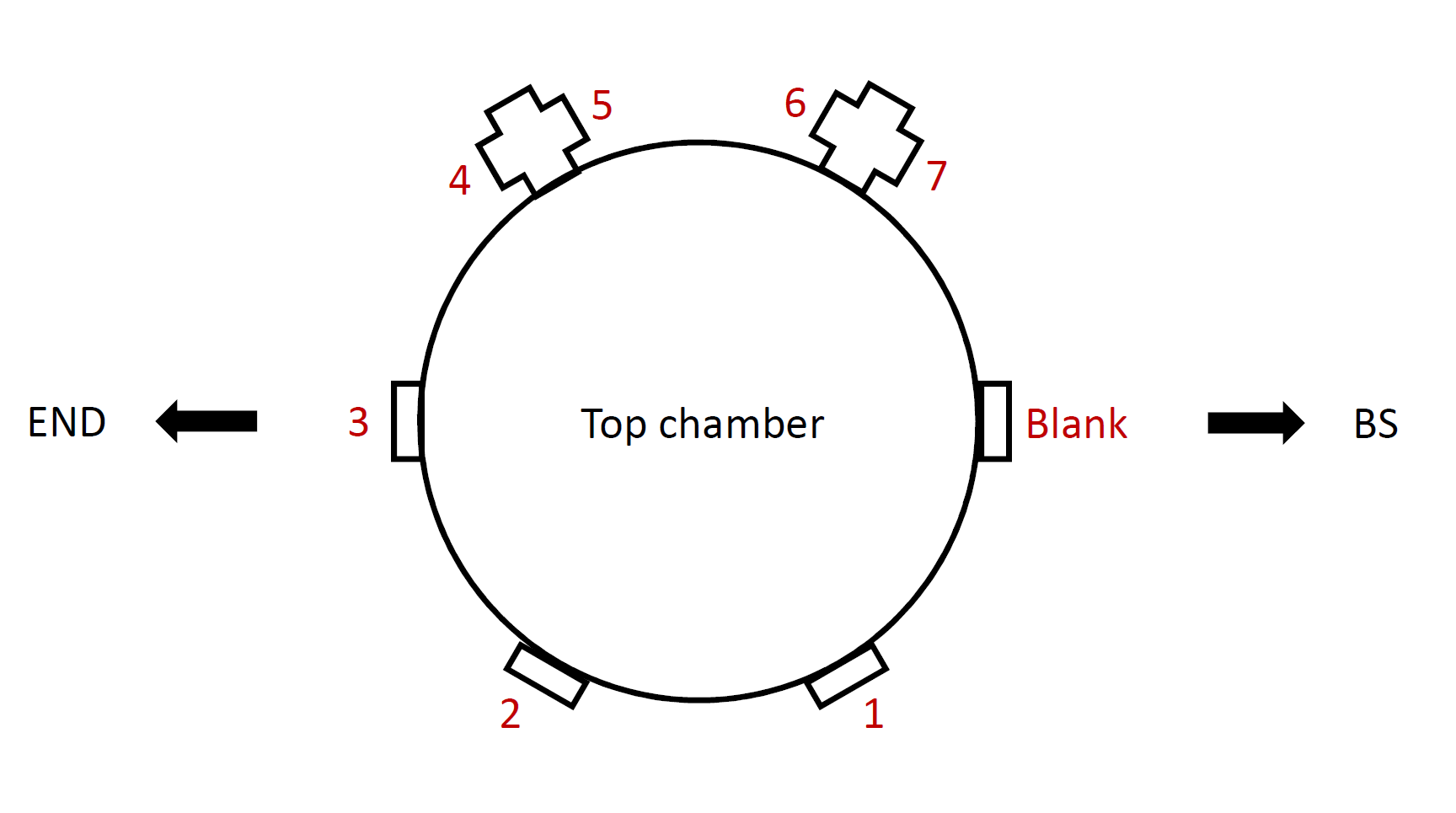

Port arrangement

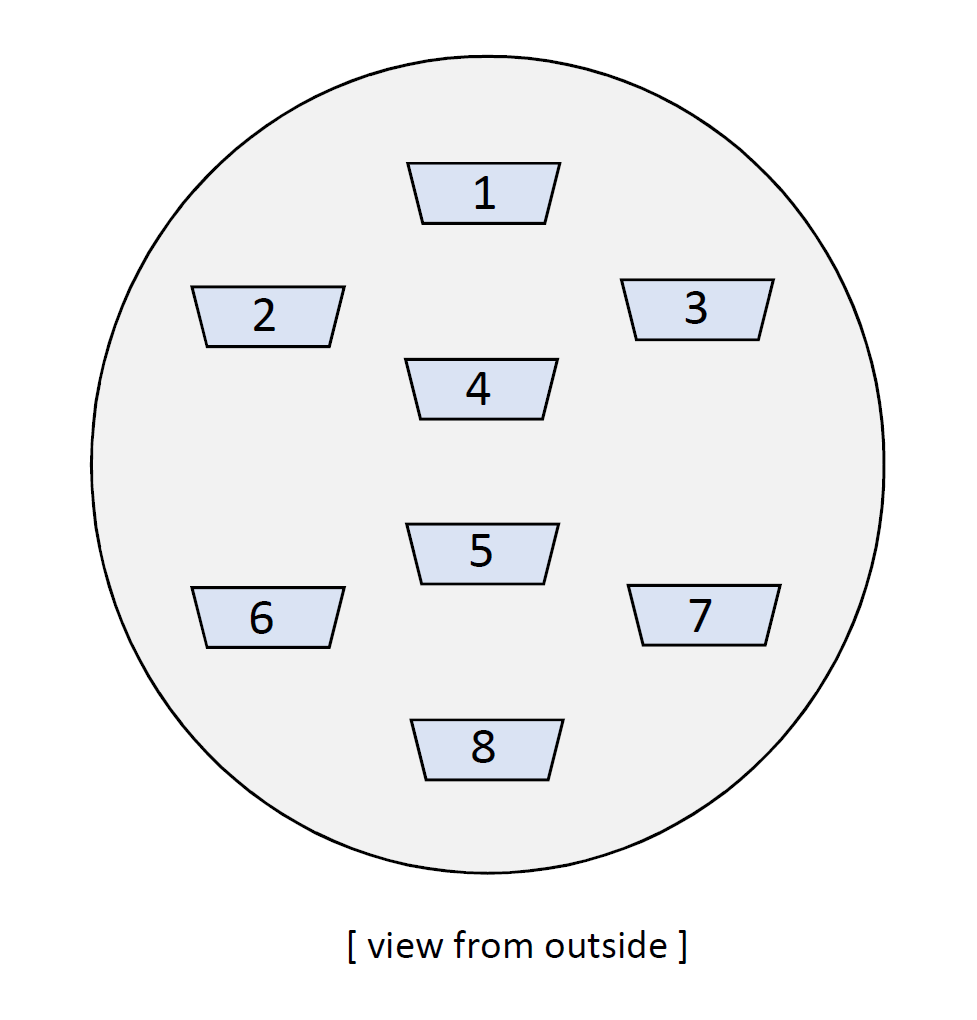

D-sub Connector arrangement
Cable Assignment as design
2021.11.2 update Current actual status
|
|
Feedthrough port |
||||||
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Connector |
1 |
BF DPCH |
IP LV1 |
F0 LV |
F1 SM |
CRYO 1 |
CRYO 9 |
CRYO 17 |
|
2 |
BF DPCV |
IP LV2 |
F1 LV |
F2 SM |
CRYO 2 |
CRYO 10 |
CRYO 18 |
|
3 |
BF DSCH |
IP LV3 |
F2 LV |
F3 SM |
CRYO 3 |
CRYO 11 |
CRYO 19 |
|
4 |
BF DSCV |
IP SM1 |
F3 LV |
BF SM |
CRYO 4 |
CRYO 12 |
CRYO 20 |
|
5 |
BF TEMP |
IP SM2 |
BF LV |
EQ4 RL |
CRYO 5 |
CRYO 13 |
IP GEO1 |
|
6 |
BF PM |
IP SM3 |
EQ1 RL |
EQ5 RL |
CRYO 6 |
CRYO 14 |
IP GEO2 |
|
7 |
IP ACC1 |
F0 SMY |
EQ2 RL |
IP ACC2 |
CRYO 7 |
CRYO 15 |
IP GEO3 |
|
8 |
IP ACC3 |
F0 SMV |
EQ3 RL |
Blank |
CRYO 8 |
CRYO 16 |
IP GEO4 |
Cable name and Tag letter
2021.11.2 update
No. |
Tag (Cable name) |
Description |
1 |
CRYO 1 |
Cryogenic part PTFE Cable 1 |
2 |
CRYO 2 |
Cryogenic part PTFE Cable 2 |
3 |
CRYO 3 |
Cryogenic part PTFE Cable 3 |
4 |
CRYO 4 |
Cryogenic part PTFE Cable 4 |
5 |
CRYO 5 |
Cryogenic part PTFE Cable 5 |
6 |
CRYO 6 |
Cryogenic part PTFE Cable 6 |
7 |
CRYO 7 |
Cryogenic part PTFE Cable 7 |
8 |
CRYO 8 |
Cryogenic part PTFE Cable 8 |
9 |
CRYO 9 |
Cryogenic part PTFE Cable 9 |
10 |
CRYO 10 |
Cryogenic part PTFE Cable 10 |
11 |
CRYO 11 |
Cryogenic part PTFE Cable 11 |
12 |
CRYO 12 |
Cryogenic part PTFE Cable 12 |
13 |
CRYO 13 |
Cryogenic part PTFE Cable 13 |
14 |
CRYO 14 |
Cryogenic part PTFE Cable 14 |
15 |
CRYO 15 |
Cryogenic part Kapton Cable 1 |
16 |
CRYO 16 |
Cryogenic part Kapton Cable 2 |
17 |
CRYO 17 |
Cryogenic part Kapton Cable 3 |
18 |
CRYO 18 |
Cryogenic part Kapton Cable 4 |
19 |
CRYO 19 |
Cryogenic part Kapton Cable 5 |
20 |
CRYO 20 |
Cryogenic part Kapton Cable 6 |
21 |
BF DPCH |
BF Dumper Primary Coils Horizontal |
22 |
BF DPCV |
BF Dumper Primary Coils Vertical |
23 |
BF LV |
BF LVDT |
24 |
BF SM |
BF Stepping Motor |
25 |
BF PM |
BF Pico Motor |
26 |
BF TEMP |
BF Temperature Sensor |
27 |
F3 LV |
F3 LVDT |
28 |
F3 SM |
F3 Stepping Motor |
29 |
F2 LV |
F2 LVDT |
30 |
F2 SM |
F2 Stepping Motor |
31 |
F1 LV |
F1 LVDT |
32 |
F1 SM |
F1 Stepping Motor |
33 |
IP LV1 |
IP LVDT 1 |
34 |
IP LV2 |
IP LVDT 2 |
35 |
IP LV3 |
IP LVDT 3 |
36 |
IP ACC1 |
IP Accelerometer 1 |
37 |
IP ACC2 |
IP Accelerometer 2 |
38 |
IP ACC3 |
IP Accelerometer 3 |
39 |
IP SM1 |
IP Stepping Motor 1 |
40 |
IP SM2 |
IP Stepping Motor 2 |
41 |
IP SM3 |
IP Stepping Motor 3 |
42 |
F0 LV |
F0 LVDT |
43 |
F0 SMV |
F0 Stepping Motor Vertical |
44 |
F0 SMY |
F0 Stepping Motor Yawing |
45 |
EQ5 RL |
EQ Stop(Dummy P) Release Sensors |
46 |
EQ4 RL |
EQ Stop(BF) Release Sensors |
47 |
EQ3 RL |
EQ Stop(F3) Release Sensors |
48 |
EQ2 RL |
EQ Stop(F2) Release Sensors |
49 |
EQ1 RL |
EQ Stop(F1) Release Sensors |
50 |
BF DSCH |
BF Dumper Secondary Coils Horizontal |
51 |
BF DSCV |
BF Dumper Secondary Coils Vertical |
52 |
IP GEO1 |
IP Geophone H1 |
53 |
IP GEO2 |
IP Geophone H2 |
54 |
IP GEO3 |
IP Geophone H3 |
55 |
IP GEO4 |
IP Geophone H4 |
Cable assignment on Filter Cup Side
D-sub Connector plate
Assignment: EXV
F1 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
F2 LV |
BF PM |
F1 LV |
F3 LV |
BF DPCH |
|
BF SM |
F2 SM |
BF TEMP |
F1 SM |
F3 SM |
BF DPCV |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
F2 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
|
CRYO 4 |
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
F2 SM |
|
CRYO 20 |
F2 LV |
Connection at B |
CRYO 1 |
CRYO 2 |
CRYO 3 |
|
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Fix at clamp (no connection) |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
F3 SM |
BF DPCV |
|
BF LV |
F3 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
BF DPCV |
F3 SM |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
BF cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
BF PM |
BF DPCH |
CRYO 17 |
BF SM |
CRYO 18 |
BF TEMP |
CRYO 19 |
|
BF DPCV |
CRYO 20 |
CRYO 1 |
Connection at B |
BF LV |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Assignment: EYV
F1 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
F2 LV |
BF PM |
F1 LV |
F3 LV |
BF DPCH |
|
BF SM |
F2 SM |
BF TEMP |
F1 SM |
F3 SM |
BF DPCV |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
F2 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
F2 SM |
|
CRYO 20 |
F2 LV |
Connection at B |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Fix at clamp (no connection) |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
F3 SM |
BF DPCV |
|
BF LV |
F3 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
BF DPCV |
F3 SM |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
BF cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
BF PM |
BF DPCH |
CRYO 17 |
BF SM |
CRYO 18 |
BF TEMP |
CRYO 19 |
|
BF DPCV |
CRYO 20 |
BF LV |
Connection at B |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Assignment: IXV
F1 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
F2 LV |
BF PM |
F1 LV |
F3 LV |
BF DPCH |
|
BF SM |
F2 SM |
BF TEMP |
F1 SM |
F3 SM |
BF DPCV |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
F2 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
F2 SM |
|
CRYO 20 |
F2 LV |
Connection at B |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Fix at clamp (no connection) |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
F3 SM |
BF DPCV |
|
BF LV |
F3 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
BF DPCV |
F3 SM |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
BF cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Connection at B |
CRYO 15 |
|
CRYO 16 |
BF PM |
BF DPCH |
CRYO 17 |
BF SM |
CRYO 18 |
BF TEMP |
CRYO 19 |
|
BF DPCV |
CRYO 20 |
BF LV |
Assignment: IYV
F1 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
F2 LV |
BF PM |
F1 LV |
F3 LV |
BF DPCH |
|
BF SM |
F2 SM |
BF TEMP |
F1 SM |
F3 SM |
BF DPCV |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
F2 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
F2 SM |
|
CRYO 20 |
F2 LV |
Connection at B |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Fix at clamp (no connection) |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
F3 SM |
BF DPCV |
|
BF LV |
F3 cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
|
BF PM |
|
F3 LV |
BF DPCH |
|
BF SM |
|
BF TEMP |
|
BF DPCV |
F3 SM |
|
BF LV |
Connection at B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fix at clamp (no connection) |
CRYO 15 |
|
CRYO 16 |
|
|
CRYO 17 |
|
CRYO 18 |
|
CRYO 19 |
|
|
CRYO 20 |
|
Fix at clamp (no connection) |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
BF cup side
Plate No. |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
Connection at A |
CRYO 1 |
CRYO 2 |
CRYO 3 |
CRYO 4 |
CRYO 5 |
CRYO 6 |
CRYO 7 |
CRYO 8 |
CRYO 9 |
CRYO 10 |
CRYO 11 |
CRYO 12 |
CRYO 13 |
CRYO 14 |
Connection at B |
CRYO 15 |
|
CRYO 16 |
BF PM |
BF DPCH |
CRYO 17 |
BF SM |
CRYO 18 |
BF TEMP |
|
CRYO 19 |
BF DPCV |
CRYO 20 |
BF LV |
